Takahashi FSQ-85EDX apochromatic...

FAST SHIPPING with express courier

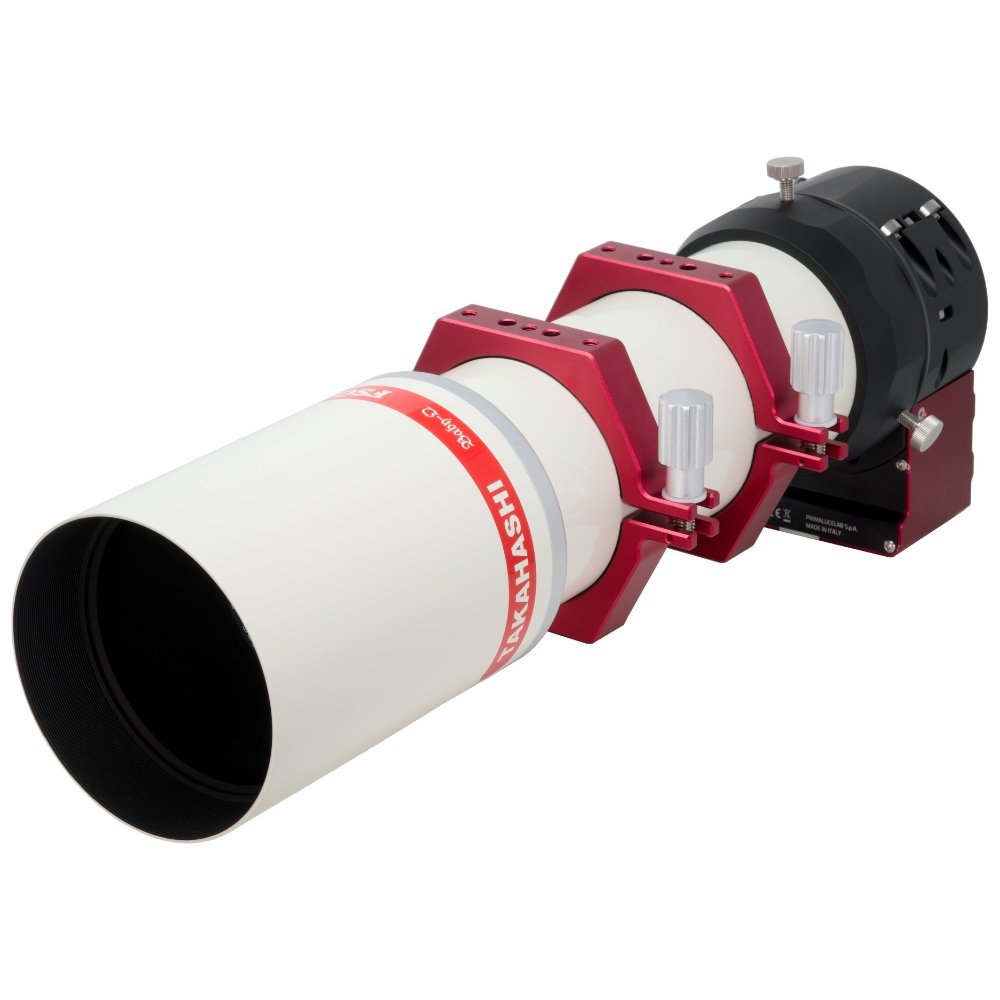

Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3"

FSQ85EDXEST3
Takahashi FSQ-85EDX with ESATTO 3" is a wonderful compact and powerful 85mm f/5.3 Petzval quadruplet apochromatic refractor that, thanks to ESATTO 3" focuser and PLUS rings, is perfect for wide-field astrophotography also with large sensor cameras.

Composed of

1x
ESATTO 3" robotic focuser


Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3": main features

The FSQ-85EDX is a Petzval quadruplet apochromatic refractor including ED glass. With a focal length of 450mm and a corrected image circle of 44mm, this refractor is ideal for wide-field astrophotography. It can also be used with the optional 1.01X flat field corrector to make the most of recent sensors with smaller and smaller pixels. As an option, you can also add a focal reducer to transform the telescope into a true high-end 328mm astronomical telephoto lens, with very fast f3.9 focal ratio, and 40mm corrected image circle!

  • Takahashi FSQ-85EDX telescope is a D:85mm F:450mm f/5.3 apochromatic refractor
  • ESATTO is the most advanced and affordable robotic focuser
  • PLUS rings offer a better stability, avoid flexures and let you connect dovetail bars, guide rings, clamps and the EAGLE



Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3"





ESATTO: the most advanced and affordable robotic focuser!

This special version of the Takahashi FSQ-85EDX replaces the standard focuser with ESATTO 3", the new generation robotic focuser that you control by any Windows computer by connecting it to a USB port, or via WiFi by using ESATTO app on your smartphone or tablet with the Virtual HandPad! On the camera side, ESATTO has a M81x1 male thread to connect and manually rotate many cameras and accessories by adding the optional adapters with stop rings. ESATTO 3" has 25mm of focuser tube travel, a 8kg payload capacity and an incredible resolution of 0,04 micron per step (and this is why we call it ESATTO)! Based on the camera and accessories you want to connect, you may need extenders to reach the focus with your camera. And you can also expand ESATTO features by adding the ARCO robotic camera rotator!



Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3"
By removing all the accessories (extensions, visual backs, etc) provided with the Takahashi FSQ-85EDX telescope, optimal backfocus distance is 197.7mm from the focuser's end. If you replace the standard focuser with the PL3600271 adapter and the ESATTO 3" focuser, optimal distance becomes 184.5mm.









Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3": perfect for remotely controlled and automated astrophotography

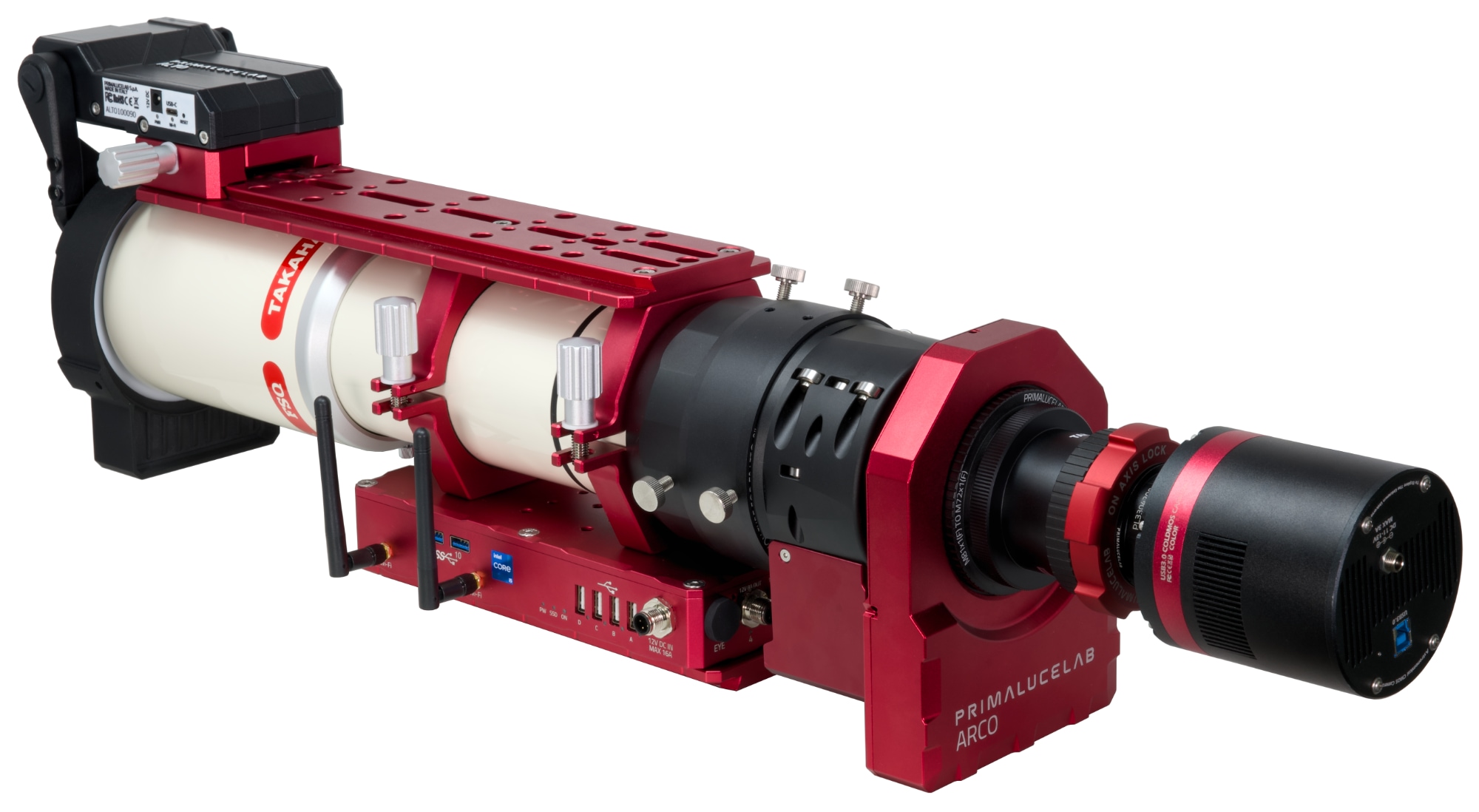

Thanks to the enhanced versatility provided by the integration of PrimaLuceLab devices with the excellent optical quality of the Takahashi FSQ-85EDX, this astrograph is a superb choice that you can also customize to optimize your astrophotography. For instance, you can add the GIOTTO120 smart flat field generator and use it as a motorized telescope cap in combination with the ALTO-1 cover motor. These can be clamped on the 350mm PLUS Losmandy-style dovetail bar, which you can install above the PLUS support rings. All these devices, along with your preferred camera and mount, can be remotely controlled and powered by the EAGLE computer, which can be directly connected to the PLUS rings.





Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3"





Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3": add the QB0.73X focal reducer for f/3.9

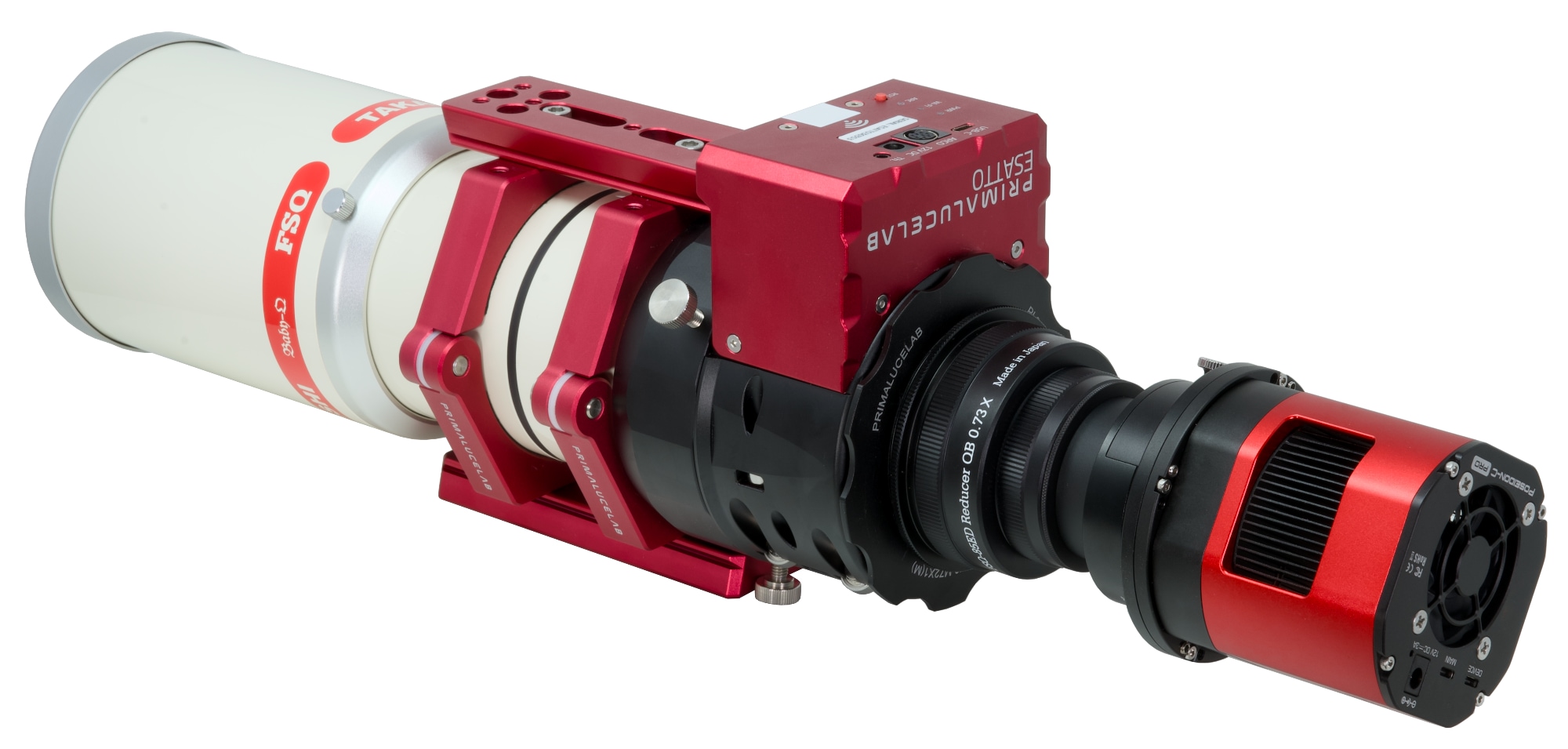

By adding the QB0.73x focal reducer you can increase even more the field of view, bringing the focal length to 330mm with a very fast focal ratio of f/3.9. The reducer features a new ED glass and creates a very small spot size. In order to use the 0.73x reducer with FSQ-85EDX with ESATTO 3" focuser, first you will have to attach the PL3600272 adapter to the ESATTO 3", then thread the reducer. In order to reach focus, you will have to remove any extension between ESATTO 3" and PL3600271 adapter, as you can see in the picture below.





Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3"





Takahashi FSQ-85EDX apochromatic refractor with ESATTO 3":

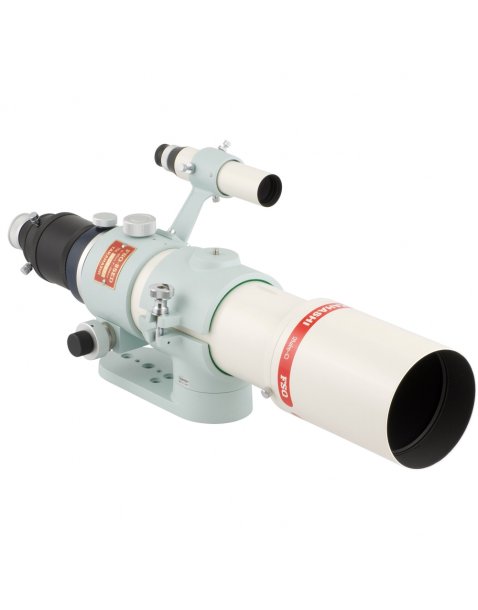

- Takahashi FSQ-85EDX apochromatic refractor D:85mm F:450mm f/5.3
- ESATTO 3" robotic focuser

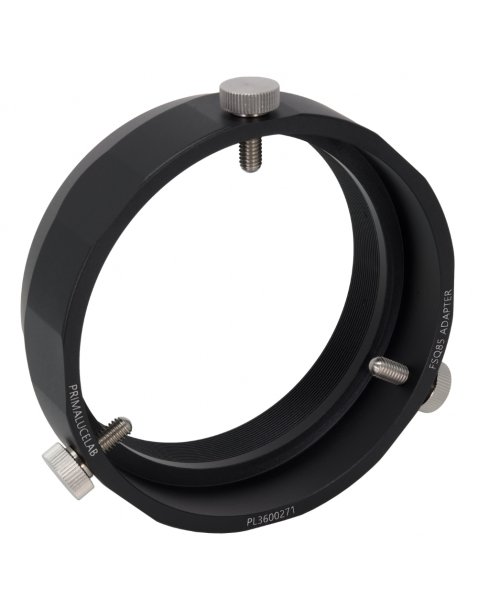

- Adapter ESATTO 3" for Takahashi FSQ85

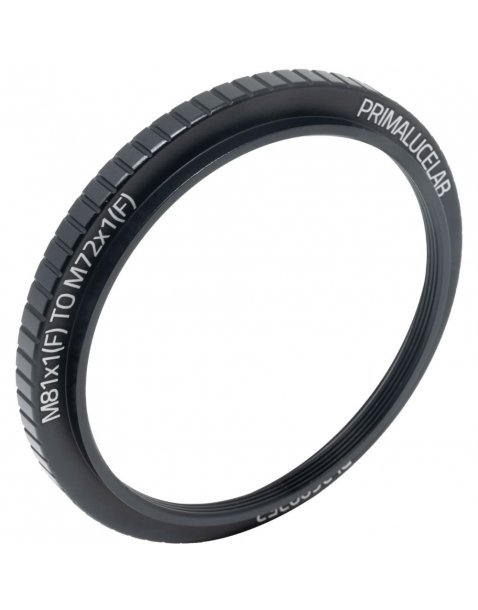

- Adapter from M81 to M72 female for ESATTO 3" and ARCO 3"

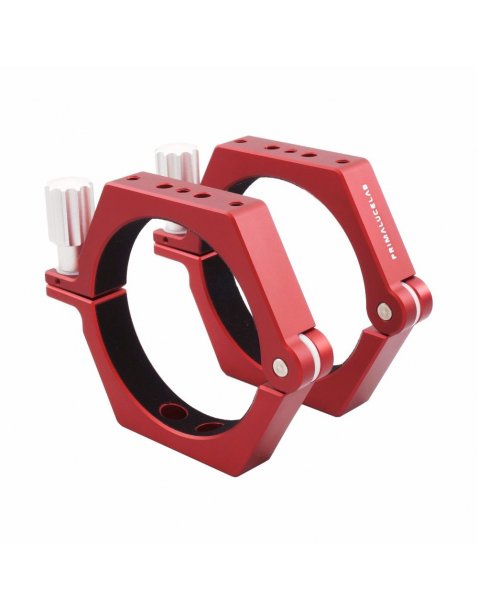

- 95mm PLUS Support rings
